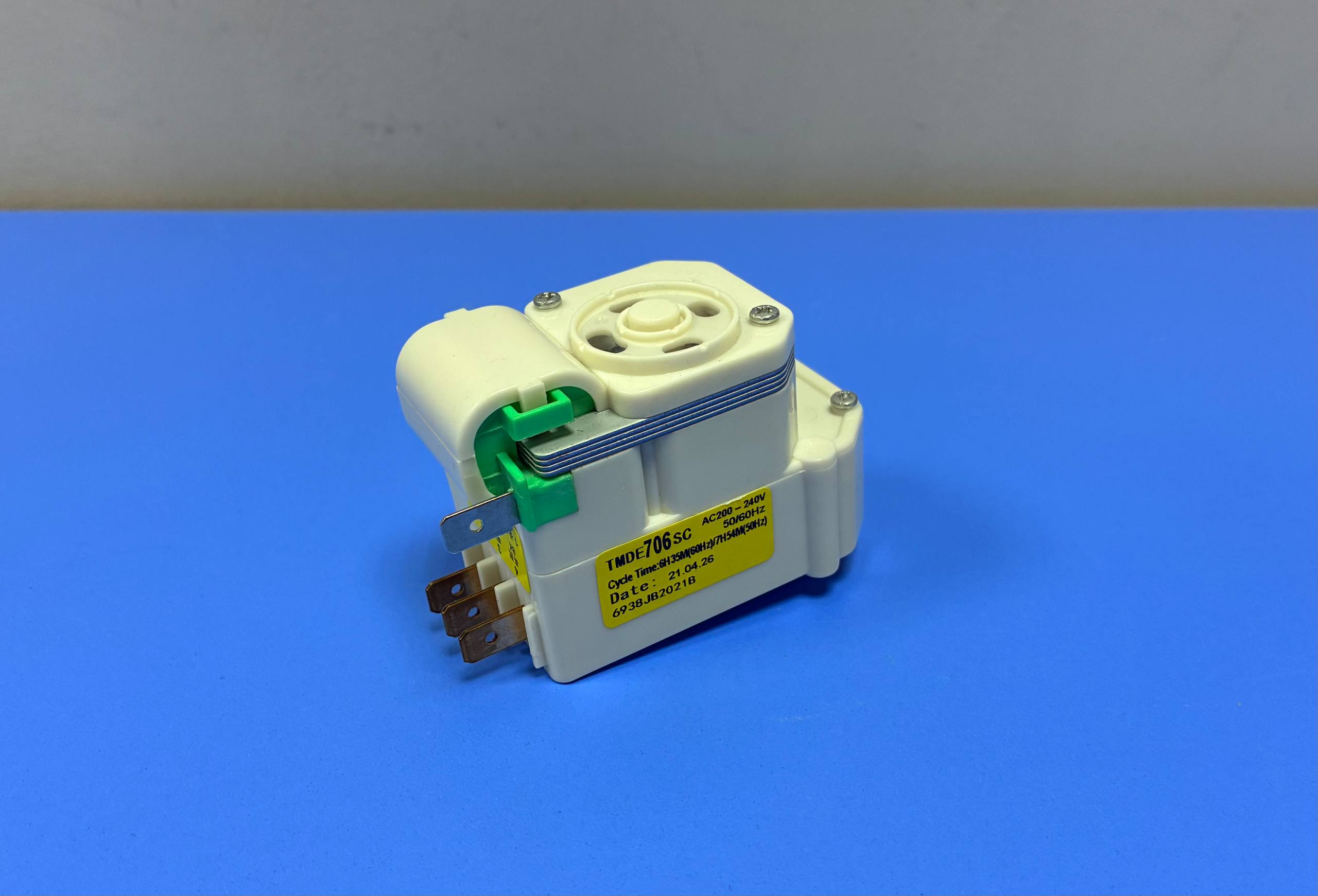

Таймер оттайки холодильника TMDE706SC

Цикл работы таймера: 7 часов 54 минуты (50 Гц), время оттайки 7 минут 30 секунд (50 Гц).

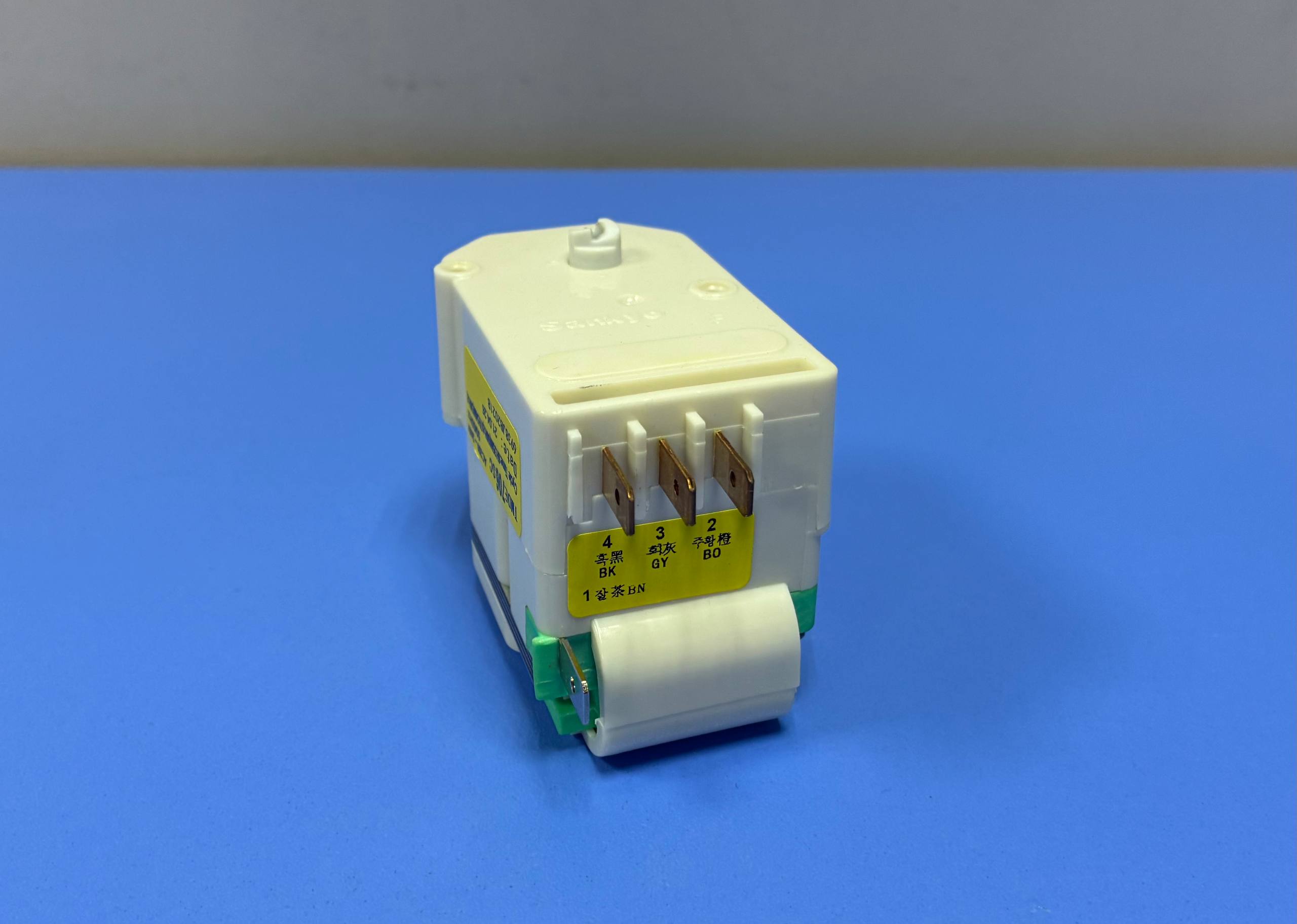

Контакты 2-3-4 вместе и 1 контакт отдельно.
Аналоги: HL022, 6914JB2006R, 6914JB2006B, 6914JB2006N, 6914JG2001A, TMP009UN, 6914JB2001B, TMP005UN, 046831, RF0201W

Совместимость с моделями: FD285NF, GR242MVF, GR313SSF, GR362MSF, FD325NF, GR242SF, GR3221W, GR362SF, FD525NF, GR252SSF, GR3222W, GR362SSF, FR3323, GR282MF, GR322W, GR372MX, GR122SJ, GR282MVF, GR322WV, GR372SF, GR122SJB, GR282SF, GR3321SBI, GR372SVF, GR122SJP, GR3121SVF, GR3321SNBI, GR392CF, GR232SBF, GR312MSF, GR332SBI, GR392CSC, GR242MF, GR312SSF, GR332SF, GR392CSF, GR242MSF, GR313SF, GR332SVF, GR392CVF, GR392FVC, GR432SVF, GR5321TF, GR602TVF, GR403SF, GR462CF, GR532TF, GR642BEF, GR403SSF, GR462CSF, GR532TVA, GR642TVF, GR403SVF, GR462CVF, GR532TVF, GR652CSF, GR412MSF, GR482BEF, GR53G41CVF, GR652SSF, GR412SSF, GR482SBF, GR5721TF, GRT3421G, GR432BEF, GR482SBI, GR572TF, GRT342G, GR432SBF, GR482SVF, GR572TVA, GRT342GV, GR432SF, GR522CF, GR572TVF, GRT342S, GR432SSF, GR522CSF, GR57G41CVF, GRT342SV, GRT3821GV, GRT452GB, GRT502GV, GRT582GA, GRT382G, GRT452GV, GRT502XV, GRT582GBX, GRT382GV, GRT452GVA, GRT542G, GRT582GV, GRT382S, GRT452X, GRT542GA, GRT582GVA, GRT382SV, GRT452XV, GRT542GAX, LG242SF, GRT4521GV, GRT5021GV, GRT542GTA, LRT352SV, GRT452G, GRT502GA, GRT542GV, RTK10VT2W, GRT452GA, GN-332S, GN-372S, GR-332SF, GR-332SVF, GR-372SF, GR-372SVF, GR-472QV, GR-562QV, GR-T382GV, GRS332SVF, GRS372SVF, GL-310QP, GL-T302QM, GL-T332JM, GL-T332QM, GN-V232RP, GR-252G, GR-252S, GR-3321W, GR-3322W, GR-432SF, GR-B302QM, GR-B350QM, GR-B410QM, GR-T310QM, GR-T332JM, GR-T350QM, GR-T410QM, GR-V232S, GRS482BEF, GN-V232S, GR-322W, GR-482SVF, GR-T452GV, GR-V252S, GRS282MF, GRS432SVF, GRST452GV, GRST502GV, GRST452GV.*, GRS372SVF.*, GRS332SVF.*, GRST502GV.*, GN-332S.ASWQKZH, GR-332SF.ASWQKZH, GN-372S.ASWQKZH, GR-372SF.ASWQKZH, GN-V232RP.APGQKZH, GN-V232S.ASWQCIS, GR-232G.ASWQKZH, GR-232S.ASWQKZH, GR-322W.ASKQCIS, GN-332S.ASKQCIS, GR-332SF.ASKQCIS, GN-332SV.ASKQCIS, GR-332SVF.SKQCIS, GN-372S.ASKQCIS, GR-372SF.ASKQCIS, GN-372SV.ASKQCIS, GR-372SVF.SKQCIS, GR-432SF.ASWQKIV, GR-472QV.ASWQCIS, GR-472QV.ASWQTRK, GR-482SVF.SSKQCIS, GR-562QV.ASWQCIS, GR-562QV.ASWQTRK, GR-T382GV.SSWQVLZ, GR-T452GV.ASEQCIS, GR-T502GV.ASEQCIS, GN-V232S.ASWQUKR, GN-V232S.ASWQKZH, GRS282MF.SWQCIS, GR-432SVF.SSKQCIS, GR-482BEF.SSWQVLZ, GR-332SVF.SSKQCIS, GR-372SVF.SSKQCIS, GR-T452GV.SSWQVLZ, GR-T502GV.SSWQVLZ, GL-310QP.BSWQKZH, GL-T302QM.ESWQMET, GL-T332JM.ESWQHSS, GL-T332QM.ESWQKZH, GR-3321W.ESWQEES, GR-3322W.ESWQEES, GR-B302QM.ESWQBAK, GR-B350QM.ESWQKZH, GR-B410QM.ESWQKZH, GR-T310QM.ASWQMEI, GR-T332JM.ESWQEMK, GR-T350QM.ESWQKZH, GR-T410QM.ESWQKZH, RT35M
